! Important

When combining accessories and adapters, the low load capacity / payload is relevant.

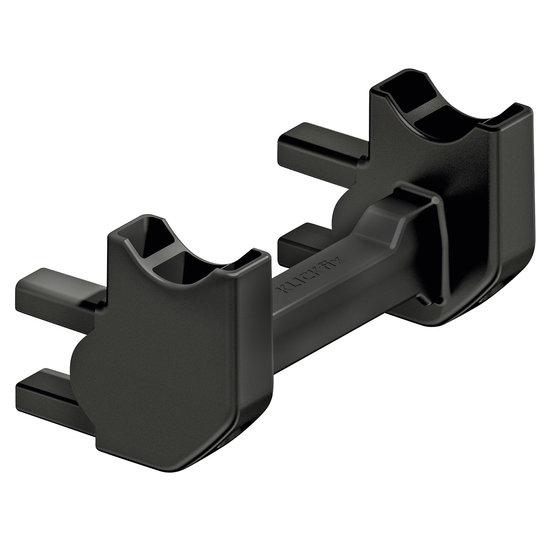

Distance Set E 90°

Handlebar Adapter E · black

Allows installing the Handlebar Adapter E below the handlebar

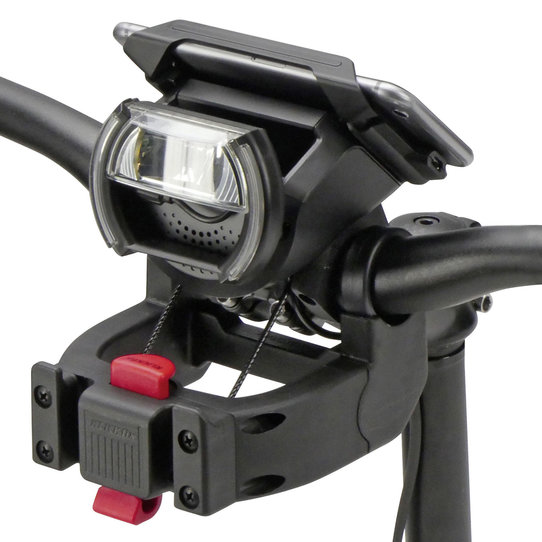

An ideal solution for combining the Handlebar Adapter E with the Cobi system or when a lower mounting position is desired. The maximum load of 7 kg remains unaffected by using the distance set. Lights and the speaker of the Cobi system can remain installed, but installing anaccessory will affect illumination.

+ For Handlebar Adapter E.
+ Allows installing the adapter below the handlebar.
+ Can be combined with all clamp sizes.

noticerecommend

Position on the bike: Handlebar
  • Item no.: 0211DC
  • EAN: 4030572105632
  • Dimensions (width x length x height): 11cm x 5.4cm x 4.5cm
  • Weight: 78 g
  • Volume: 0 l
  • Max load: 7 kg max.

rec. retail price: 16,50 €
